HELLA brake pad packaging and brake system components

HELLA Brake Systems

Premium braking coverage from pads to complete system service

Brake pads are the focus, supported by rotors, calipers and service accessories for complete brake system repair.

HELLA Brake Systems bring OE-focused quality, broad application coverage and dependable braking performance together in one complete category for European, Domestic and Asian vehicles.

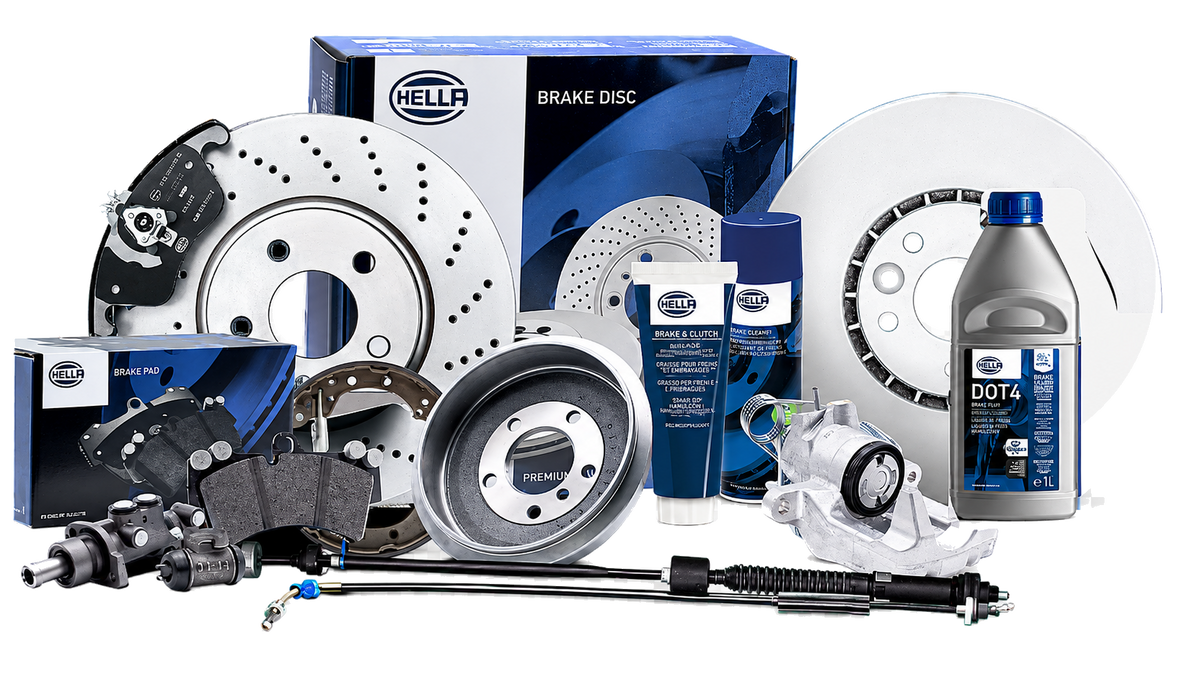

HELLA brake system product range including discs, calipers, pads and brake fluid

HELLA Brake Pads

The main focus of the HELLA Brake Systems category, engineered for confident stopping performance, broad coverage and OE-focused fit.

HELLA brake pads are designed around the right friction formula for the vehicle, brake system, engine output, driving load and brake characteristics. The range includes more than 2,300 items manufactured from 50 friction lining formulas.

  • More than 2,300 brake pad items
  • 50 friction lining formulas
  • European, Domestic and Asian application coverage
  • Over 100 compounds for vehicle-specific friction
  • OEM-identical pad design and shims
  • OE stopping capability and consistent brake feel

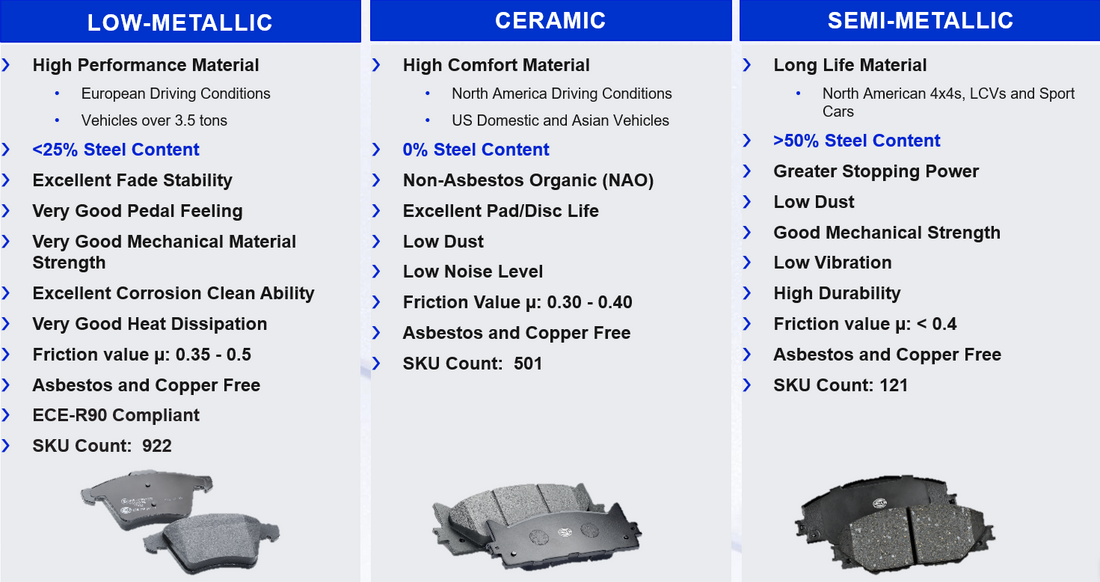

  • Ceramic, Low-Metallic and Semi-Metallic formulations
HELLA brake pad packaging

HELLA Brake Rotors

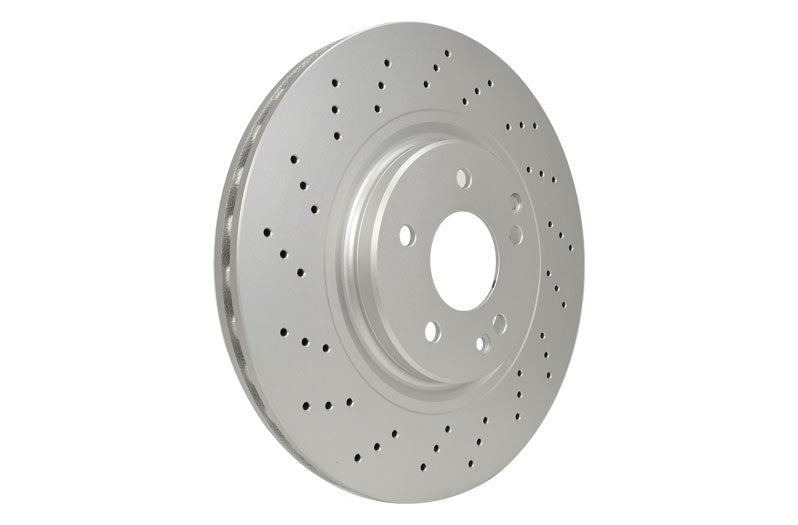

HELLA High Carbon brake rotor

High Carbon Rotors

HELLA offers high-strength, highly carburized brake discs specially designed for high-powered electric and hybrid vehicles that offer sports car-level performance but are significantly heavier than sports cars due to their batteries. The increased carbon content ensures optimal braking performance even in extreme situations thanks to its rapid heat dissipation.

The advantages of high-carbon brake discs:

  • Minimal fading: optimum braking performance even in extreme situations thanks to faster heat dissipation of the high-strength grey cast iron.
  • Reduced brake noise: best noise-damping properties thanks to increased carbon content.
  • Fewer disc impacts: the improved heat conductivity of the high-carbon material reduces deformation. The result is less vibration and smoother braking.
  • Reliable protection: the paintwork provides lasting protection against corrosion for the pot and outer ring and is also more resistant to wheel cleaner.
  • Enhanced braking comfort: the best tolerance values make braking safer and more direct.
  • Time-saving installation: no protective oil needs to be removed thanks to the coating. The brake disc is ready for immediate installation.
  • Environmentally friendly coating: the coating consists of a special, water-based varnish that is completely harmless to the environment.

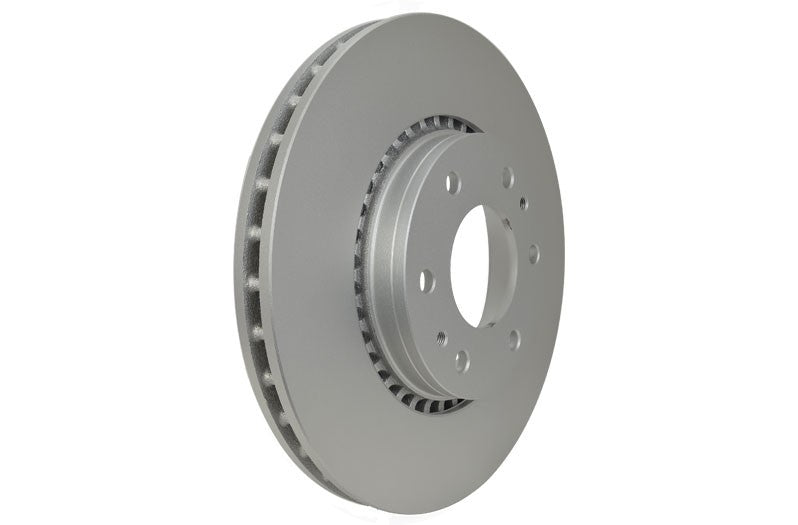

HELLA two-piece brake rotor

Two-Piece Rotors

HELLA Two-Piece Rotors feature an aluminum hat and a High Carbon friction ring, which are bonded together by rivets. The use of aluminum delivers weight savings of 15 to 20 percent and reduces the unsprung mass of the brake system.

Key features and benefits:

  • Made in Europe: engineered and manufactured to meet stringent quality standards.
  • Improved driving characteristics: reduced unsprung mass compared to one-piece rotors enhances vehicle handling and responsiveness.
  • High Carbon friction ring with aluminum hat: combines durability, thermal performance and weight reduction.
  • OE-spec dimensions and cooling fin structure: optimized for proper fitment and stopping performance.
  • Fully coated: provides corrosion protection and allows for easy installation with no cleaning required prior to installation.

Calipers

HELLA Brake Calipers

Core-free new calipers built for easy handling, quality assurance and complete brake system repair.

  • Over 352 new parts
  • One, two and four-piston arrangements
  • Core-free new parts
  • Anticorrosion protection
  • Premium accessory kit for core-free brake calipers
  • 100% end-of-line inspection
  • 100% pressure testing

The Complete Brake Job

Brake pads are the focus, supported by rotors, calipers and service accessories for complete brake system repair.

Brake Pads

All brake jobs start here.

Brake Rotors

Whether you are a DIYer or having a shop do the job, new rotors are a must.

Brake Calipers

Round out the brake job with all new HELLA calipers.

Vehicle fitment matters

Brake components must be matched to the correct vehicle application and brake system configuration. Always verify year, make, model, trim and rotor or caliper specifications before purchase or installation.

Find the right HELLA brake parts

Start with brake pads, then complete the job with rotors, calipers, hoses, hardware kits and brake fluid.
