C220 Halogen Combi-Headlamp - Snow Plow

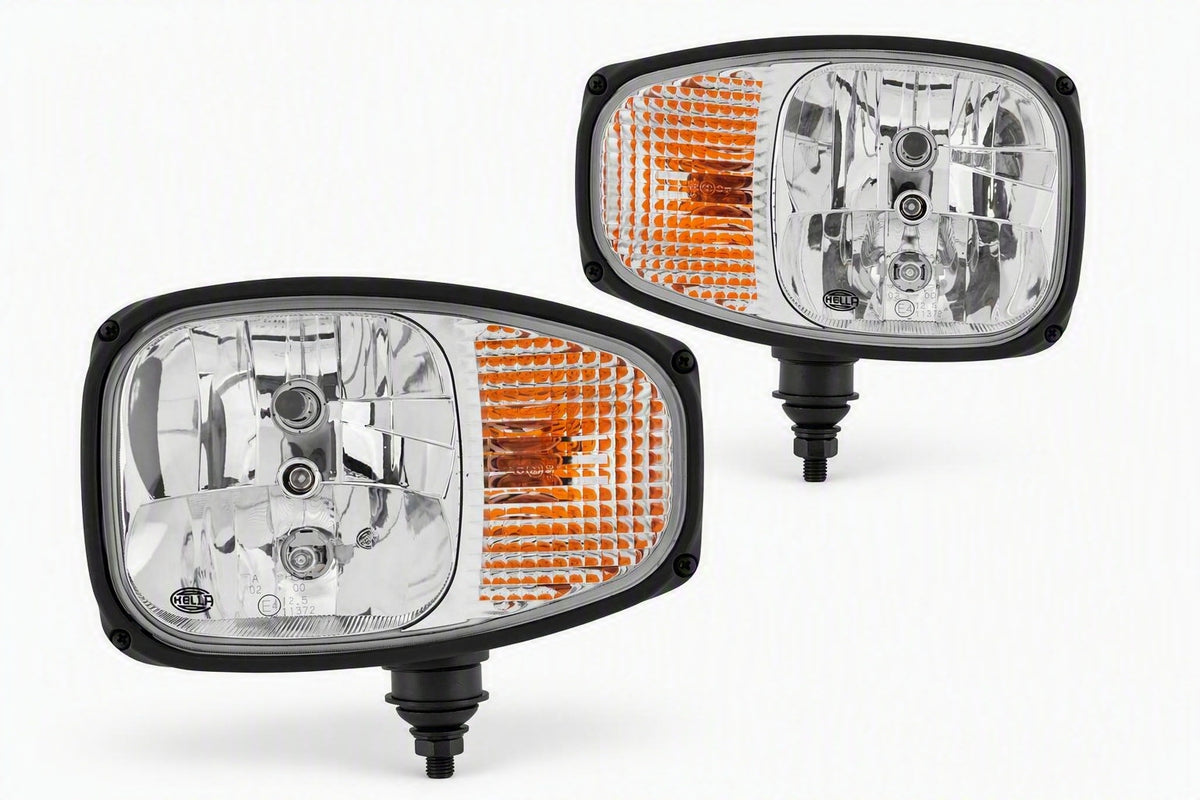

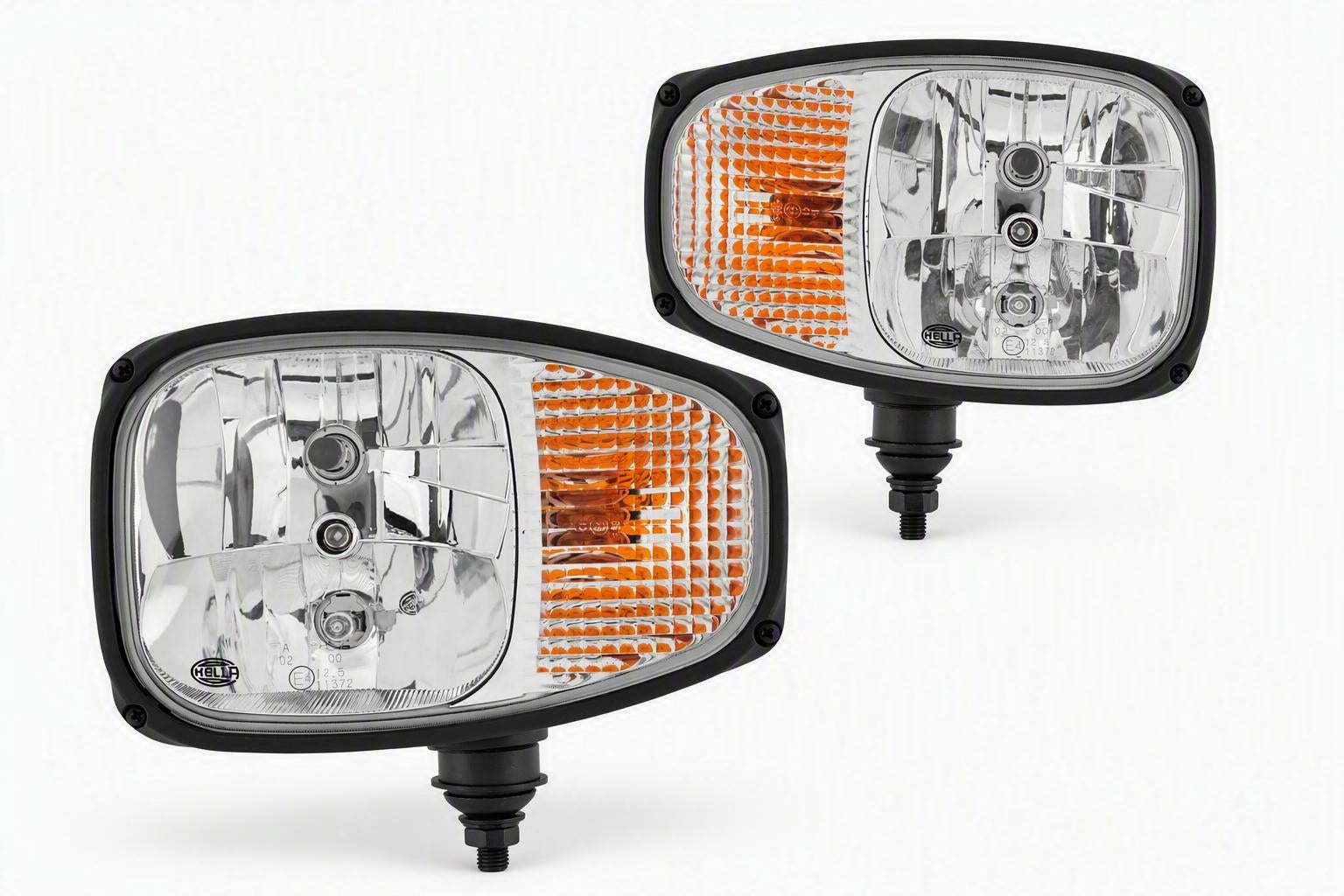

Name: Pair C220 Halogen Combi-Headlamp - Snow Plow
SKU: 9961742
Price: 499.99 USD
Availability: InStock

In stock

SKU: 996174251

No reviews

Usually ships within 24 hours

$259.99

Side

Left Right Pair

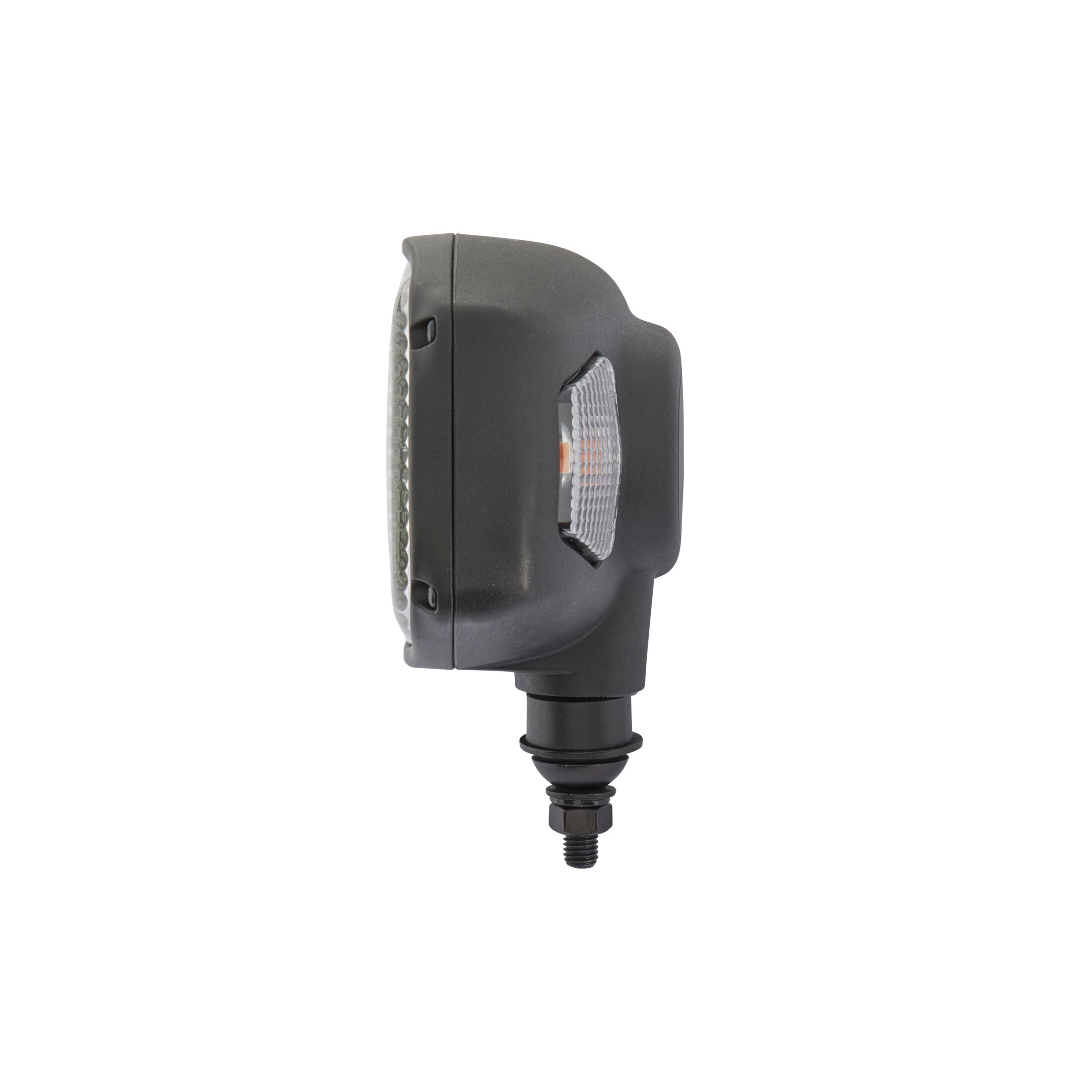

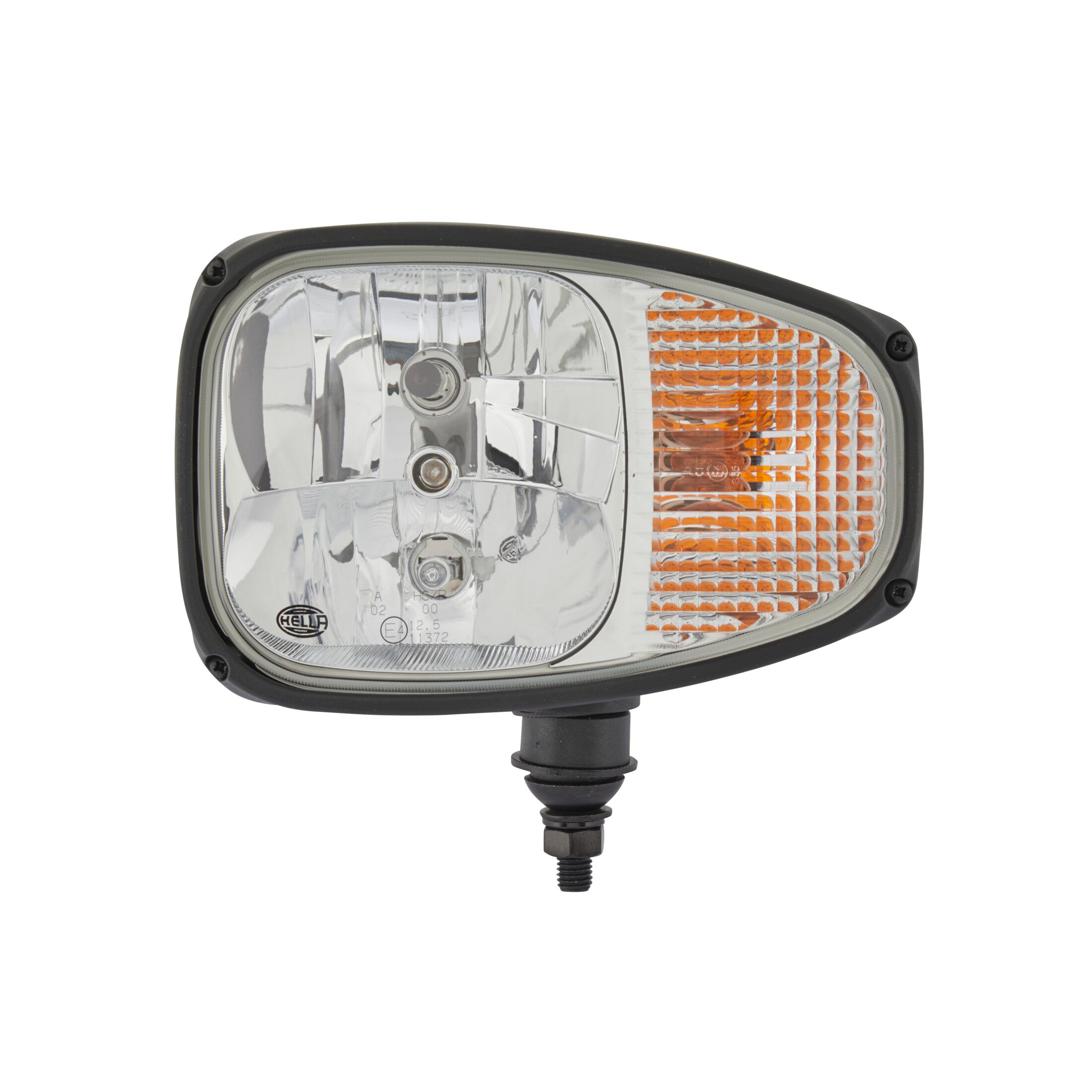

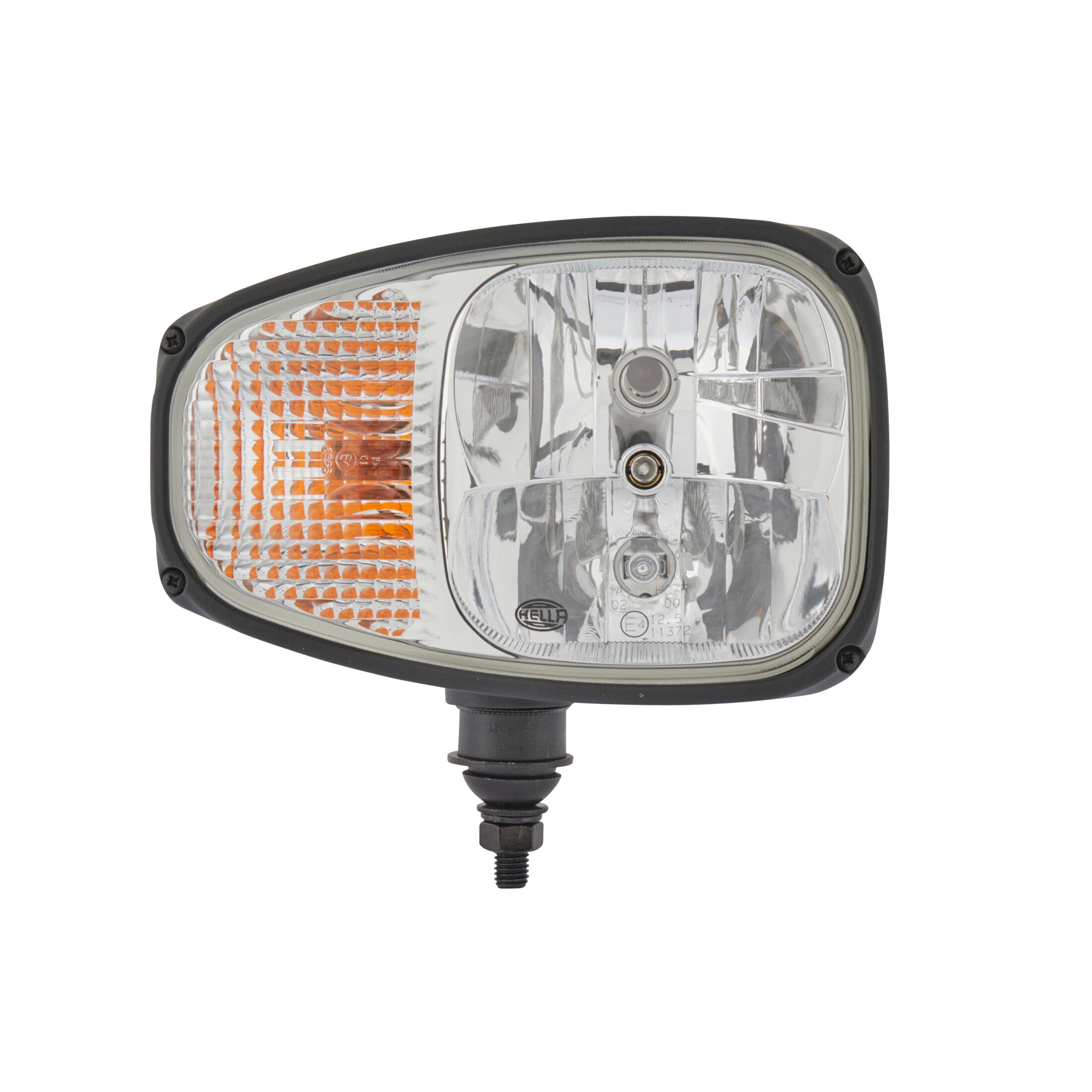

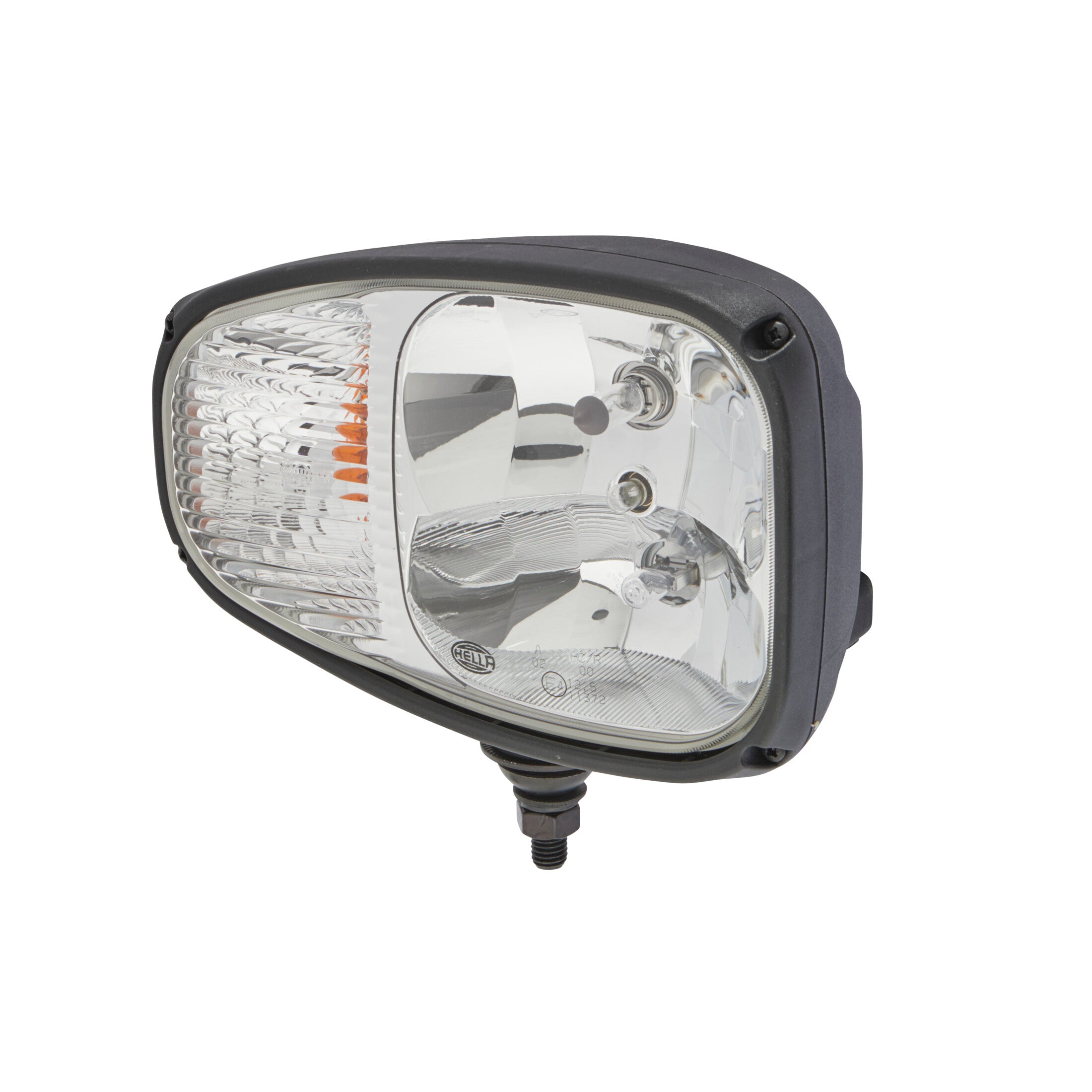

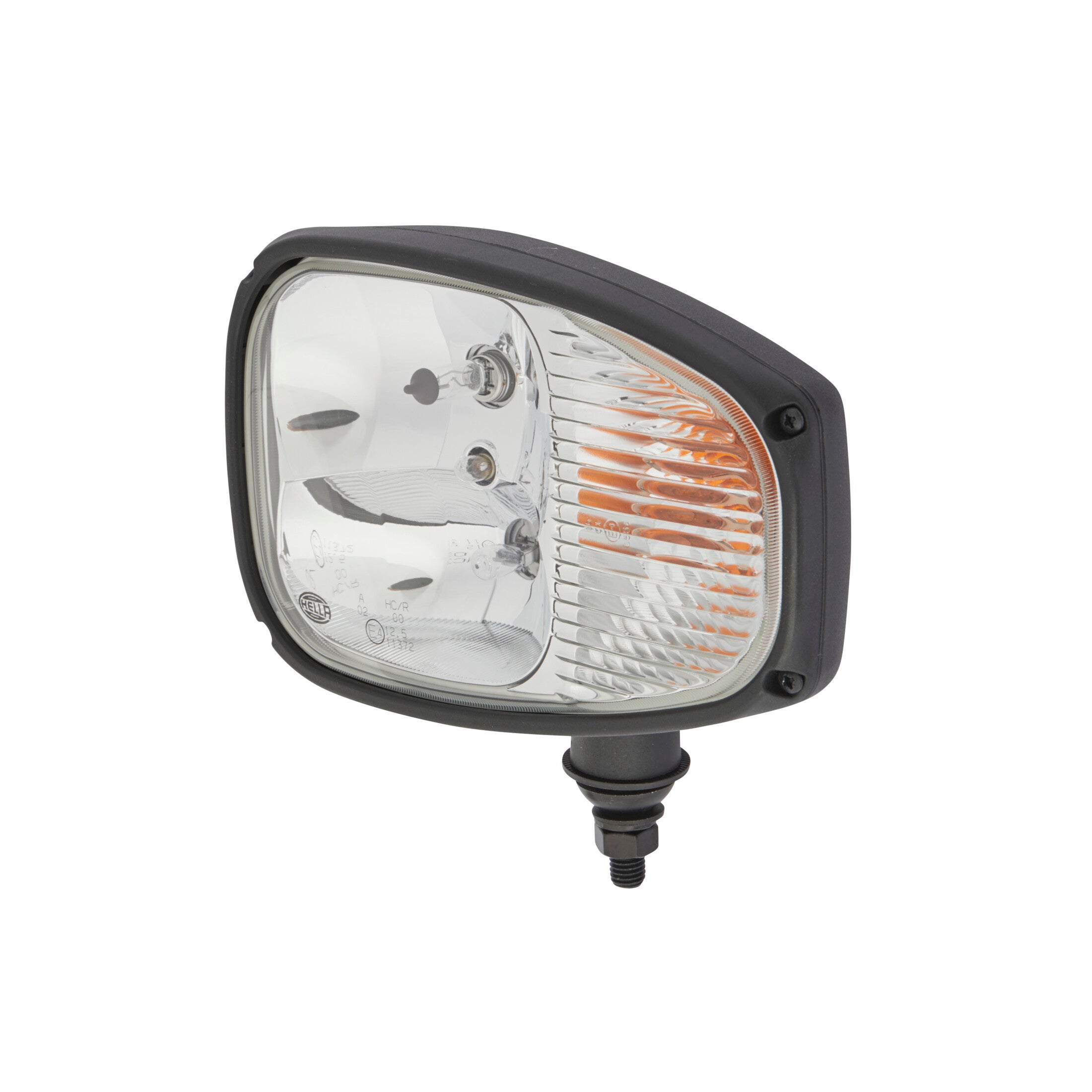

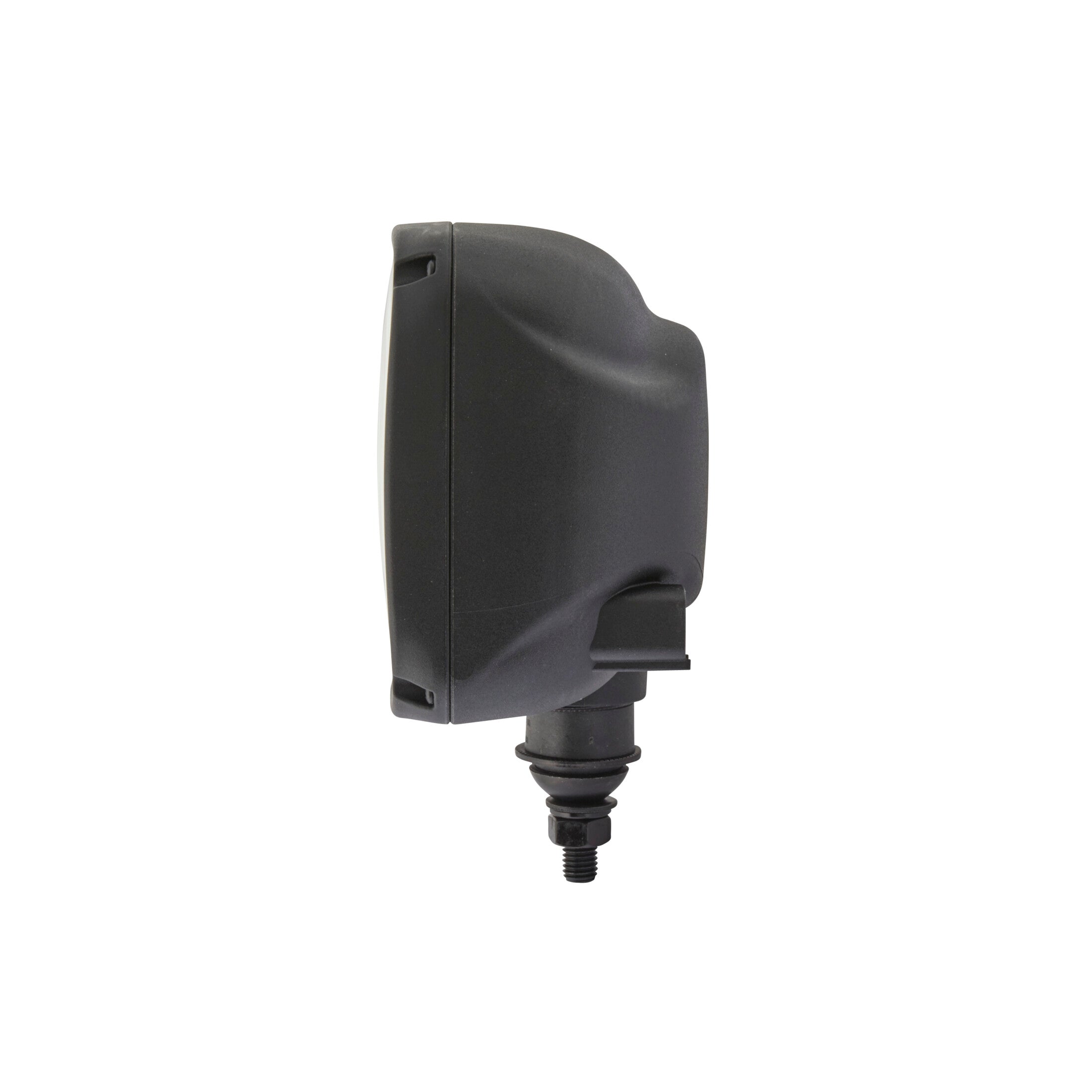

The HELLA C220 Combi Headlamp is a robust halogen combination headlamp designed for commercial vehicles, agricultural equipment, construction machinery, and industrial applications. This optics-free headlamp integrates four essential lighting functions into one durable unit, providing reliable visibility and safety in demanding working environments.

Featuring an H7 low beam, H3 high beam, position light, and direction indicator, the C220 offers excellent illumination while maintaining a compact design. Its versatile construction allows installation on vertical mounting surfaces, making it ideal for a wide range of vehicle applications.

Key Features

Four integrated lighting functions in a single housing
H7 low beam, H3 high beam, position light, and indicator lamp
Suitable for 12V and 24V electrical systems
Designed for right-hand traffic applications
Ideal for commercial, agricultural, and off-highway vehicles
Vertical mounting capability for enhanced installation flexibility
ECE approved and compliant with ECE R10 and R112 standards

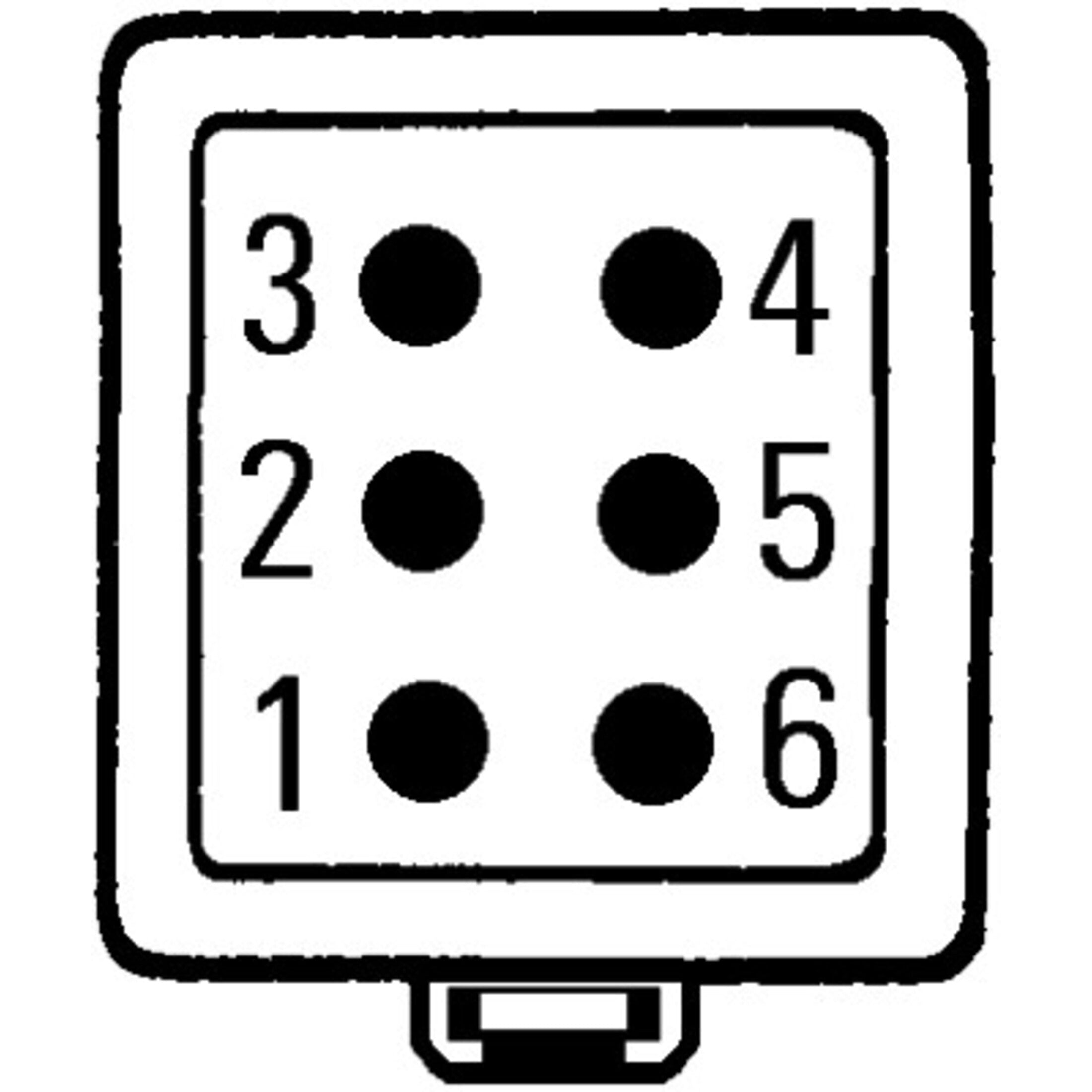

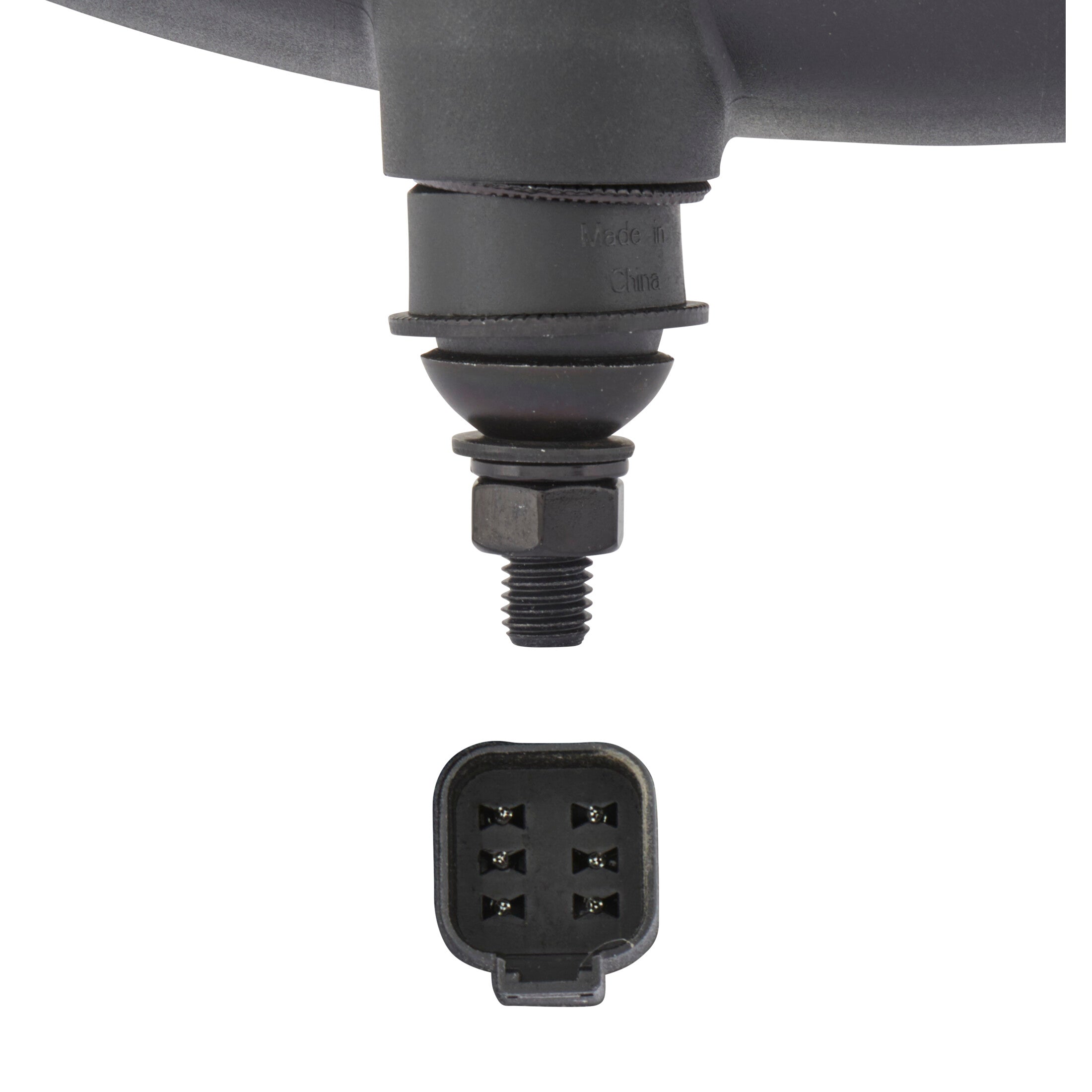

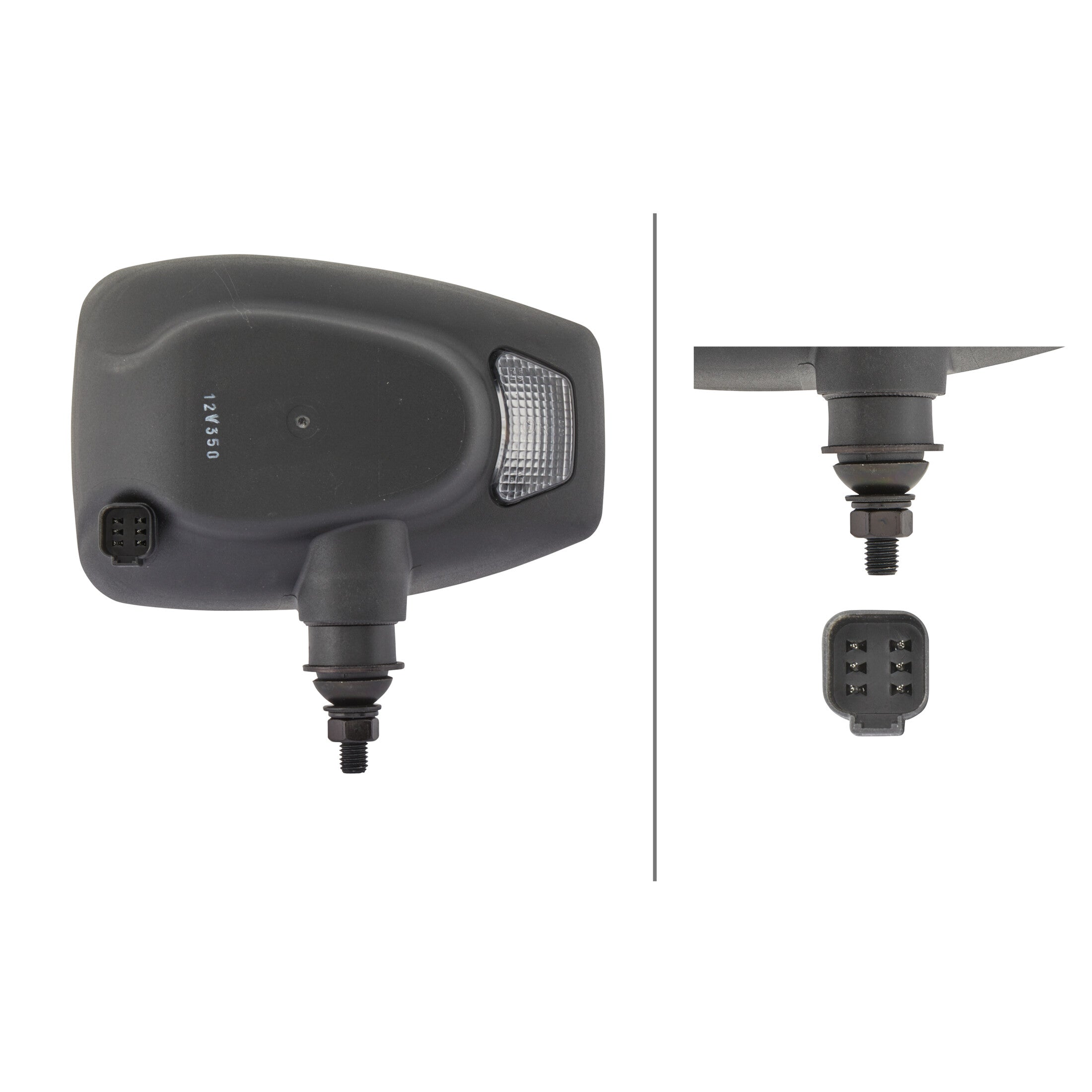

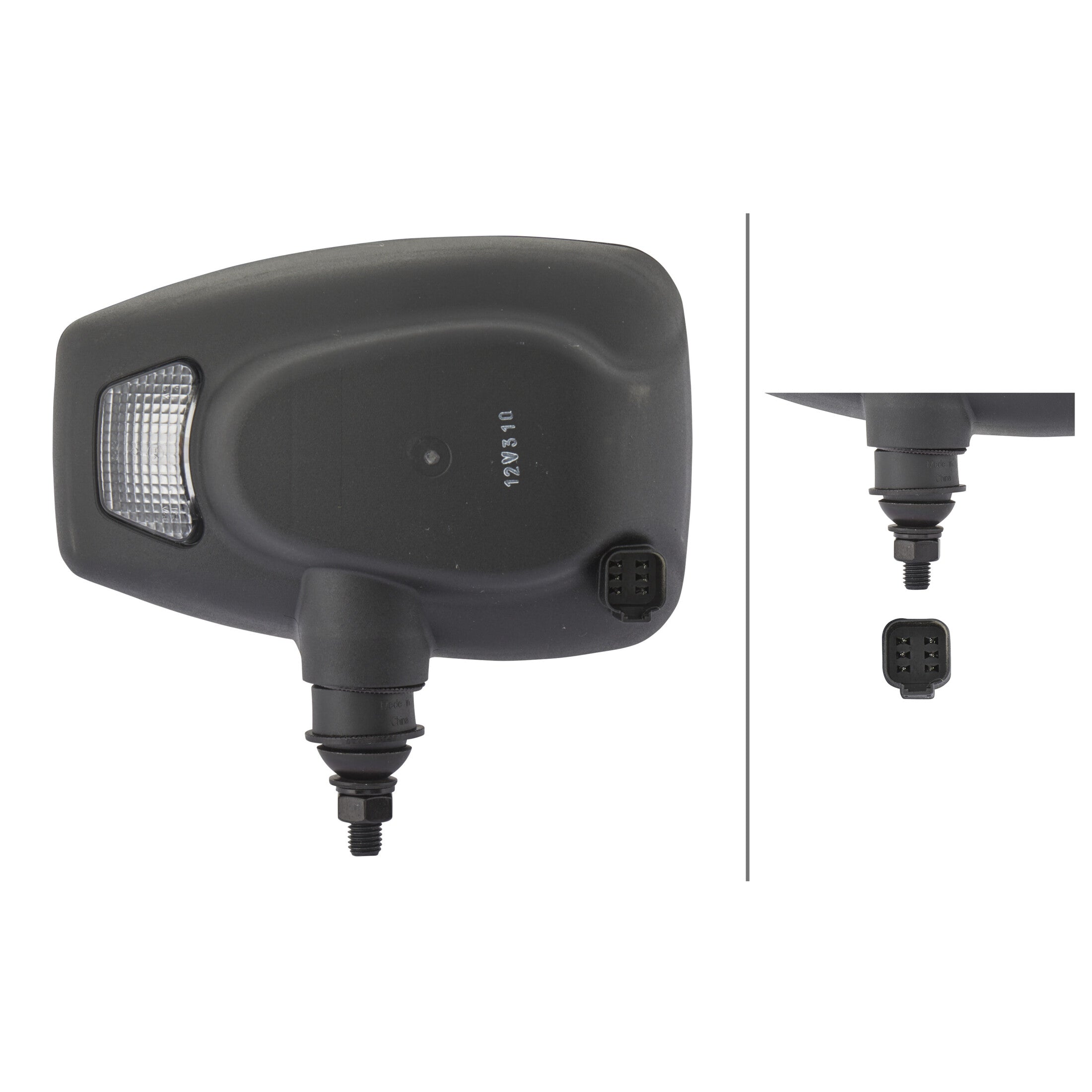

DEUTSCH plug connection for reliable electrical performance

Durable Construction

Built to withstand harsh operating conditions, the C220 features a hardened glass lens and a corrosion-resistant glass-fiber reinforced housing. The housing material offers excellent resistance to acids, chemicals, and environmental exposure, ensuring long service life in demanding applications.

The headlamp is rated IP6K9K, providing superior protection against dust ingress and high-pressure or steam-jet cleaning.

Technical Specifications

Part Type	Halogen Combi Headlamp
Width	225 mm
Height	150 mm
Depth	101 mm
Voltage	12V / 24V
Lamp Types	H7, H3, PY21W, T4W
Light Functions	Low Beam, High Beam, Position Light, Indicator
Number of Functions	4
Mounting Type	Bolted / Screw-On
Installation Side	Left
Traffic Orientation	Right-Hand Traffic
Connector	DEUTSCH Plug
Protection Rating	IP6K9K
Approval	ECE Approved (R10, R112)
Housing Material	Glass-Fiber Reinforced Plastic / Polycarbonate
Bulbs Included	No

OEM Cross References

Compatible replacement for the following OEM part numbers:

AEBI: 1268361-5, 1268892-3
AMMANN: 1565928
FARESIN: ME11096A40
KOMATSU: 42T0643140
LIEBHERR: 12218800, 12218800 WIRD-257
MANITOU: 265416, 265416B, J265416
TOYOTA: 0050202
WEIRO: 28894

Fitment Information

Please verify dimensions, mounting configuration, electrical connector type, and OEM reference numbers before ordering to ensure correct fitment for your specific vehicle or equipment application.
