HELLA VALUEFIT S3000 LED Work Light - Close Range
The HELLA VALUEFIT S3000 LED Work Light delivers powerful, uniform close-range illumination for demanding work environments. Its 3,000-lumen measured light output provides excellent visibility across a wide working area, making it an effective upgrade from conventional halogen lighting.
Designed for commercial vehicles and heavy-duty equipment, the compact S3000 combines efficient LED performance with a rugged die-cast aluminum housing, durable polycarbonate lens, and sealed DEUTSCH electrical connection. For optimal light distribution, a mounting height of approximately 2.5 meters is recommended.
Key Features
- Powerful 3,000-lumen measured light output
- Close-range beam pattern for broad, uniform work-area illumination
- Comparable to xenon lighting performance
- Can replace multiple conventional halogen work lights in suitable applications
- 9 high-performance LEDs with 6,500K white light
- Compact square design for universal vehicle and equipment applications
- Rugged die-cast aluminum housing with a patterned polycarbonate lens
- Sealed 800 mm cable with DEUTSCH connector
- Maintenance-free LED technology with a longer service life than halogen bulbs
- HELLA VALUEFIT quality at a cost-effective price
Technical Specifications
| Part Number | 357109002 |
| Brand | HELLA VALUEFIT |
| Product Series | S3000 |
| Light Source | LED |
| Number of LEDs | 9 |
| Operating Voltage | 10-52V DC |
| Rated Voltage | 12V / 24V |
| Power Consumption | 31W |
| Measured Light Output | 3,000 lm |
| Theoretical Light Output | 5,000 lm |
| Color Temperature | 6,500K |
| Light Color | White |
| Beam Pattern | Close-range illumination |
| Mounting Type | Bracket mounting |
| Protection Rating | IP6K7 / IP6K9 |
| Approval | ECE R10 |
| Housing Material | Die-cast aluminum |
| Housing Color | Black |
| Lens Material | Polycarbonate (PC) |
| Lens Type | Patterned lens |
| Lens Color | Crystal clear |

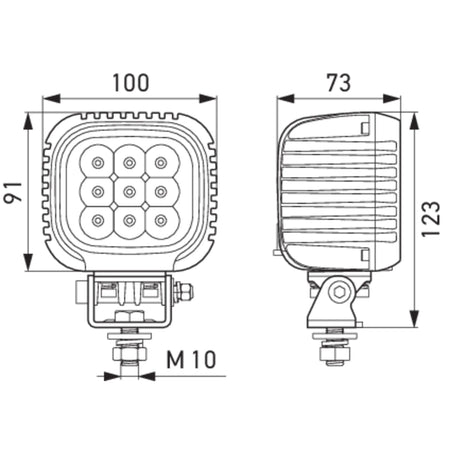

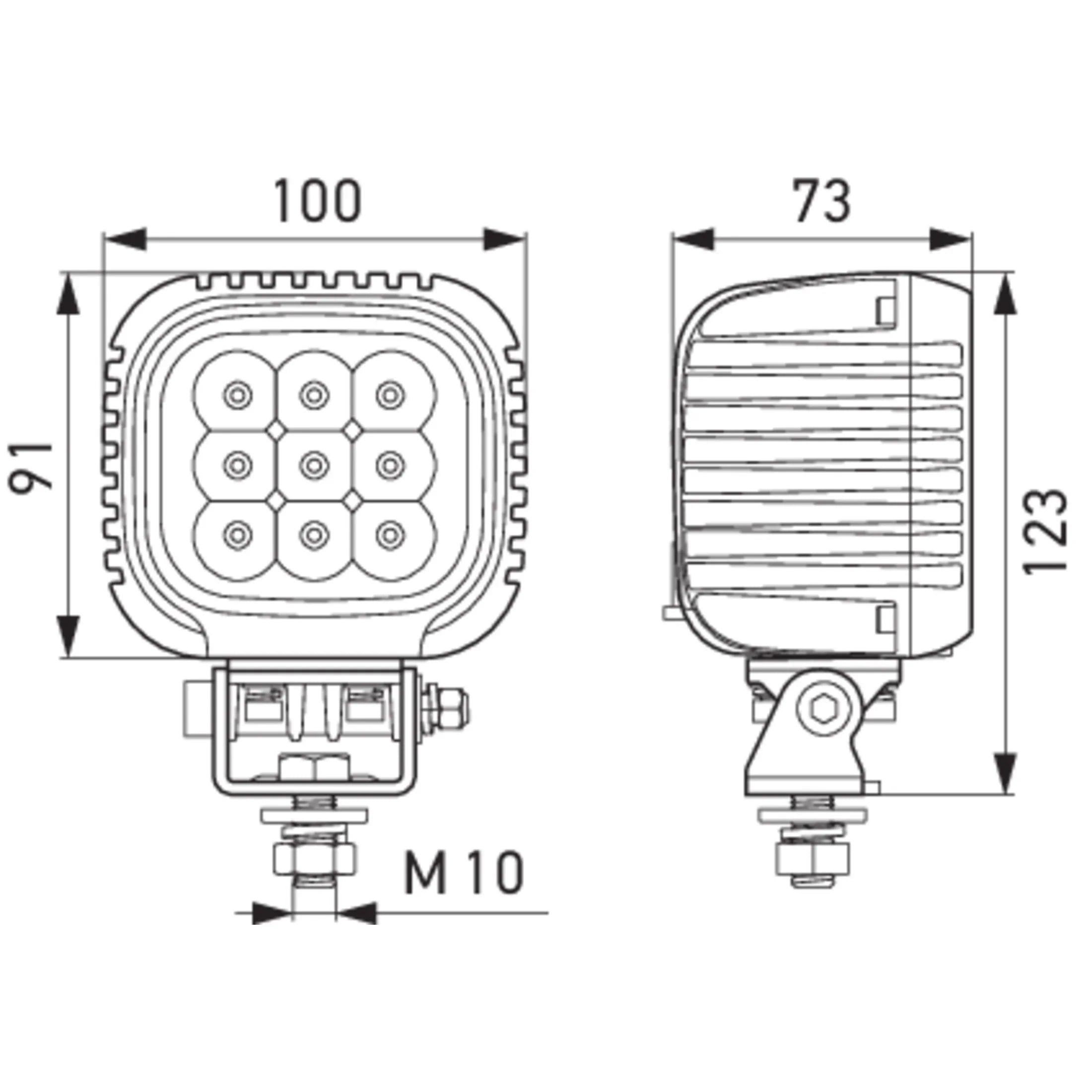

| Dimensions | 100 mm W x 123 mm H x 73 mm D |
| Lamp Height | 92 mm |
| Overall Height | 123 mm |
| Cable Length | 800 mm |
| Connector | DEUTSCH plug |
| Operating Temperature | -40°C to +65°C |
| Weight | 790 g |
| Shape | Square |
| Quantity | 1 work light |
| EAN | 9002920163811 |
Ideal Applications
Suitable for trucks, agricultural machinery, construction equipment, material-handling equipment, utility vehicles, trailers, and other applications requiring powerful close-range work-area illumination.
Installation Notes
- Supports upright bracket mounting.
- A mounting height of approximately 2.5 meters is recommended for optimal, large-area illumination.
- Verify the mounting position and beam angle for the intended vehicle or equipment application.
- Assembly and installation should be performed by qualified personnel.
HELLA VALUEFIT: Quality tested by HELLA at a competitive price.
