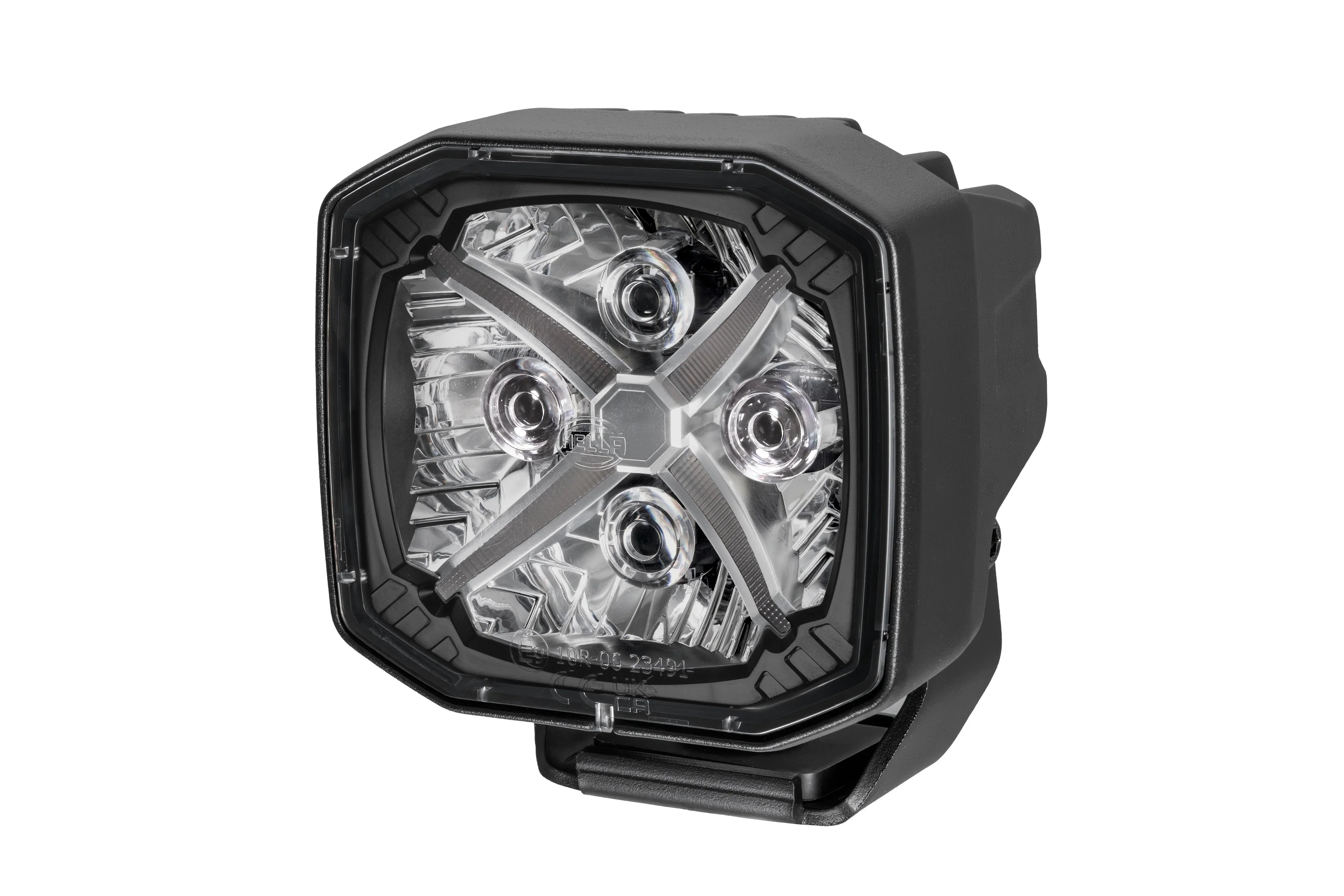

HELLA X‑TREME LED Cube Light (XT‑3S Spot Beam)
The HELLA 358233841 X‑TREME LED Cube Light delivers exceptional off-road illumination with advanced LED technology, rugged construction, and innovative “X” position light design. Engineered for trucks, SUVs, and off-road vehicles, it provides superior visibility and durability in extreme environments.
Key Features
- High-output 5,700 lumens for powerful illumination /li>
- Spot beam pattern (approx. 8°) for long-distance visibility

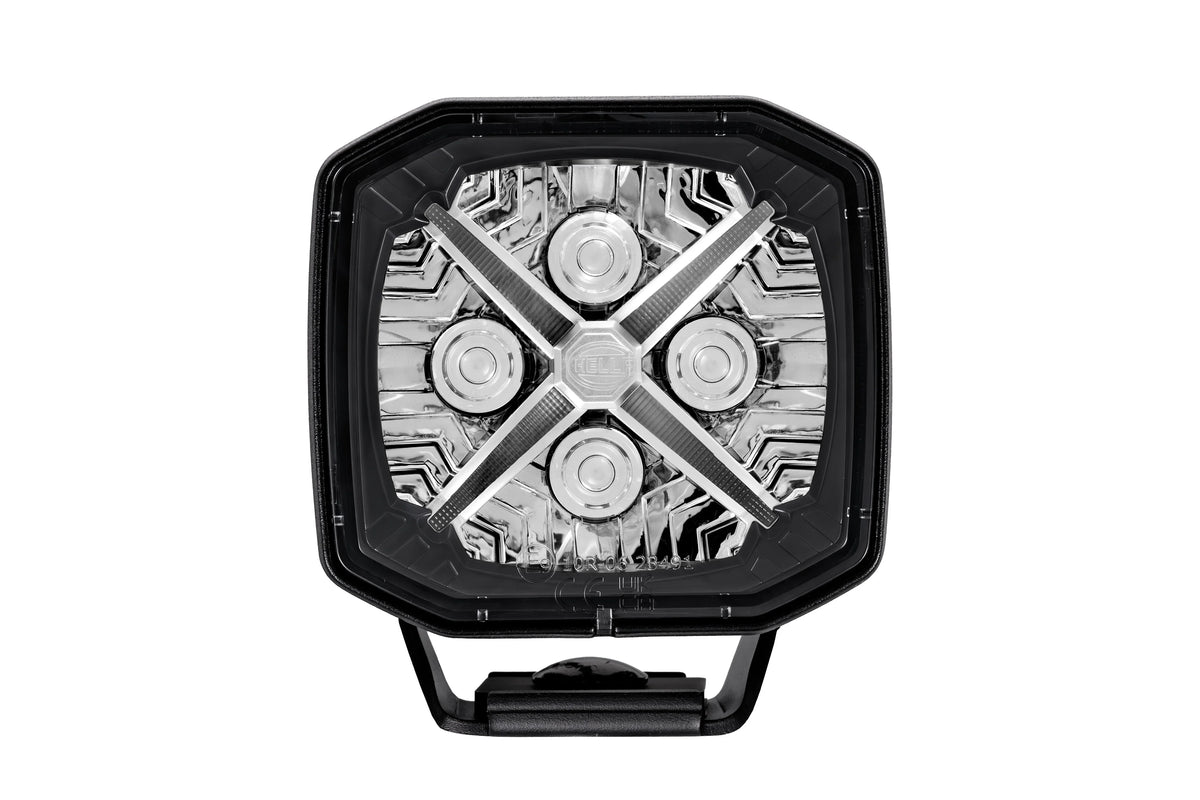

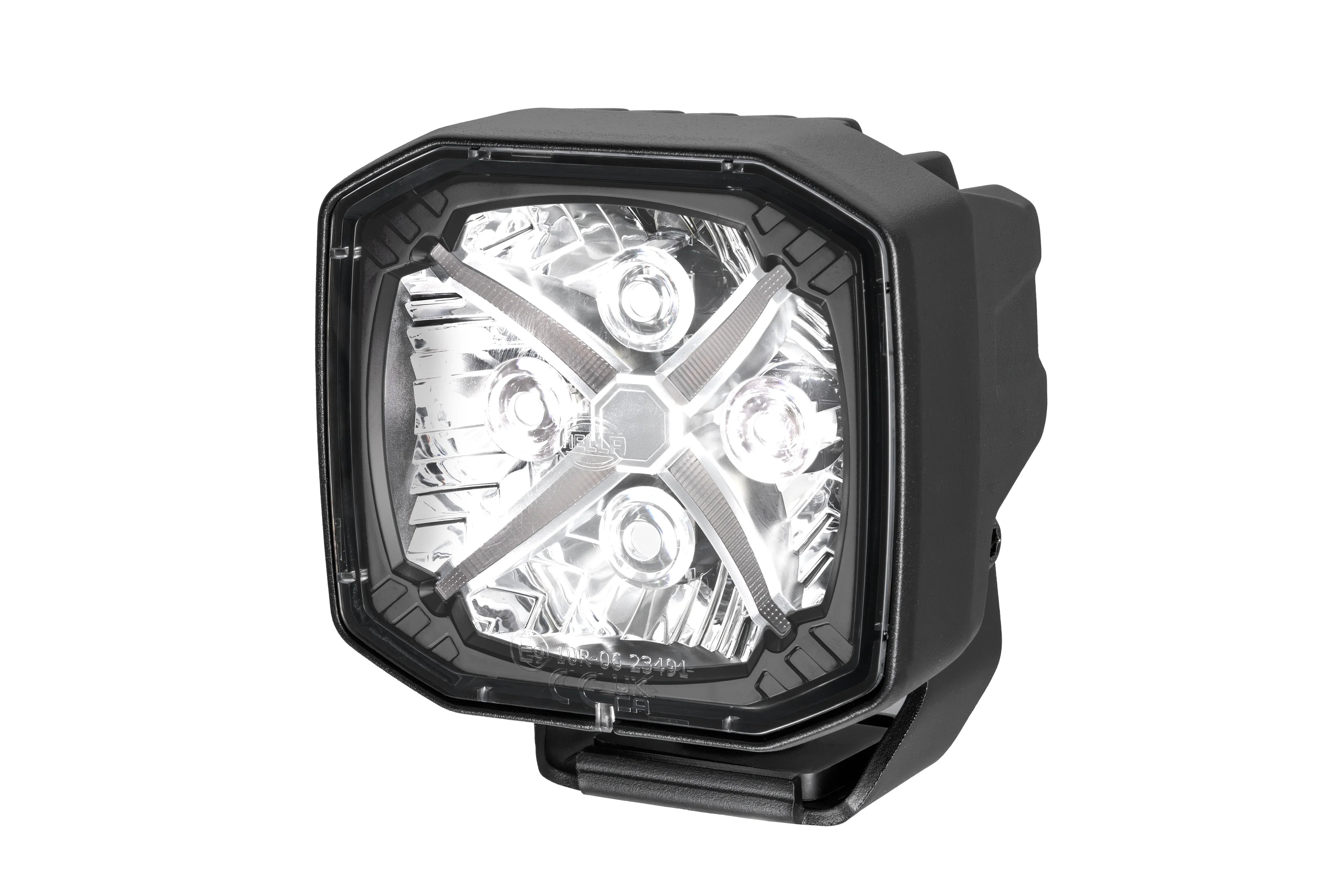

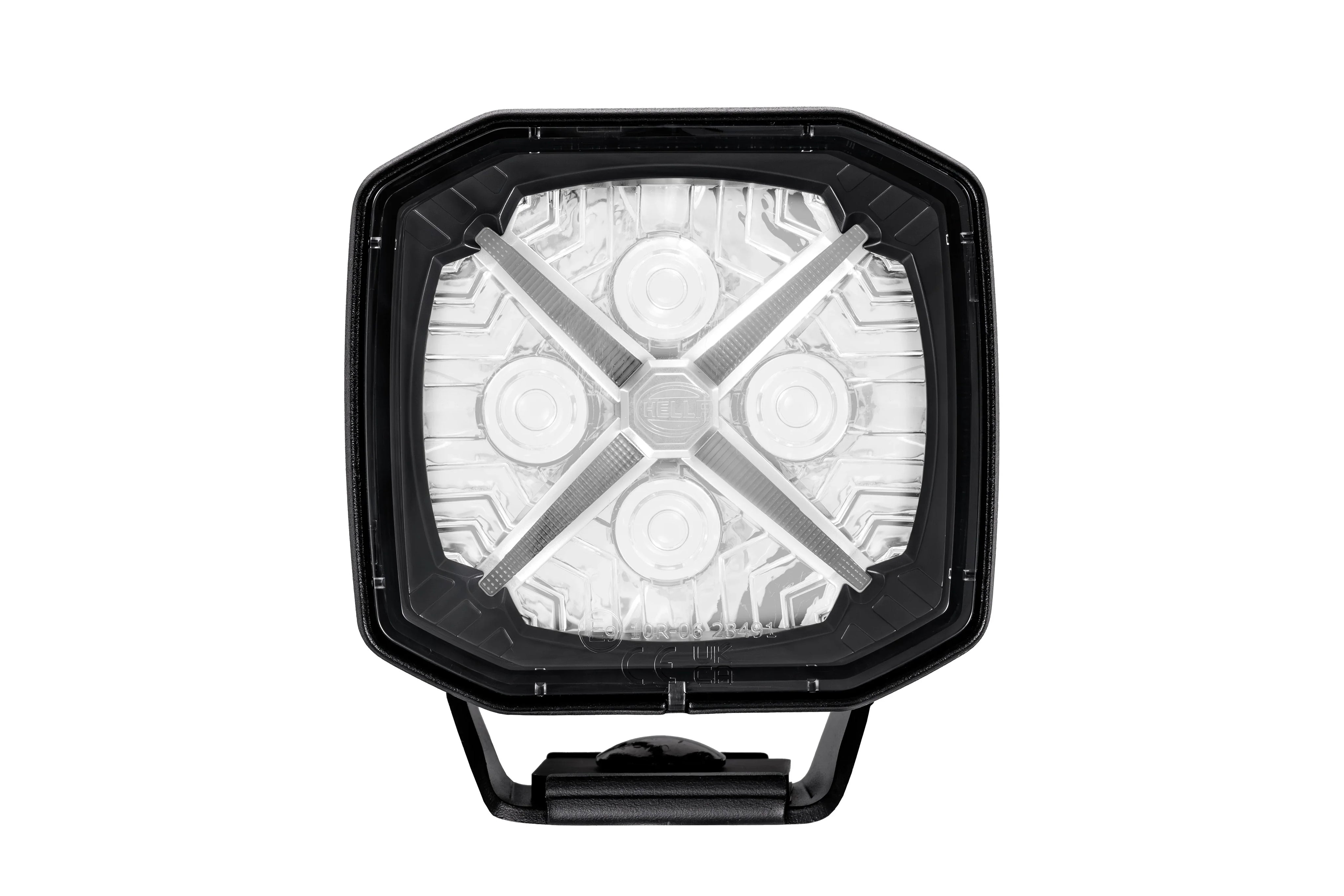

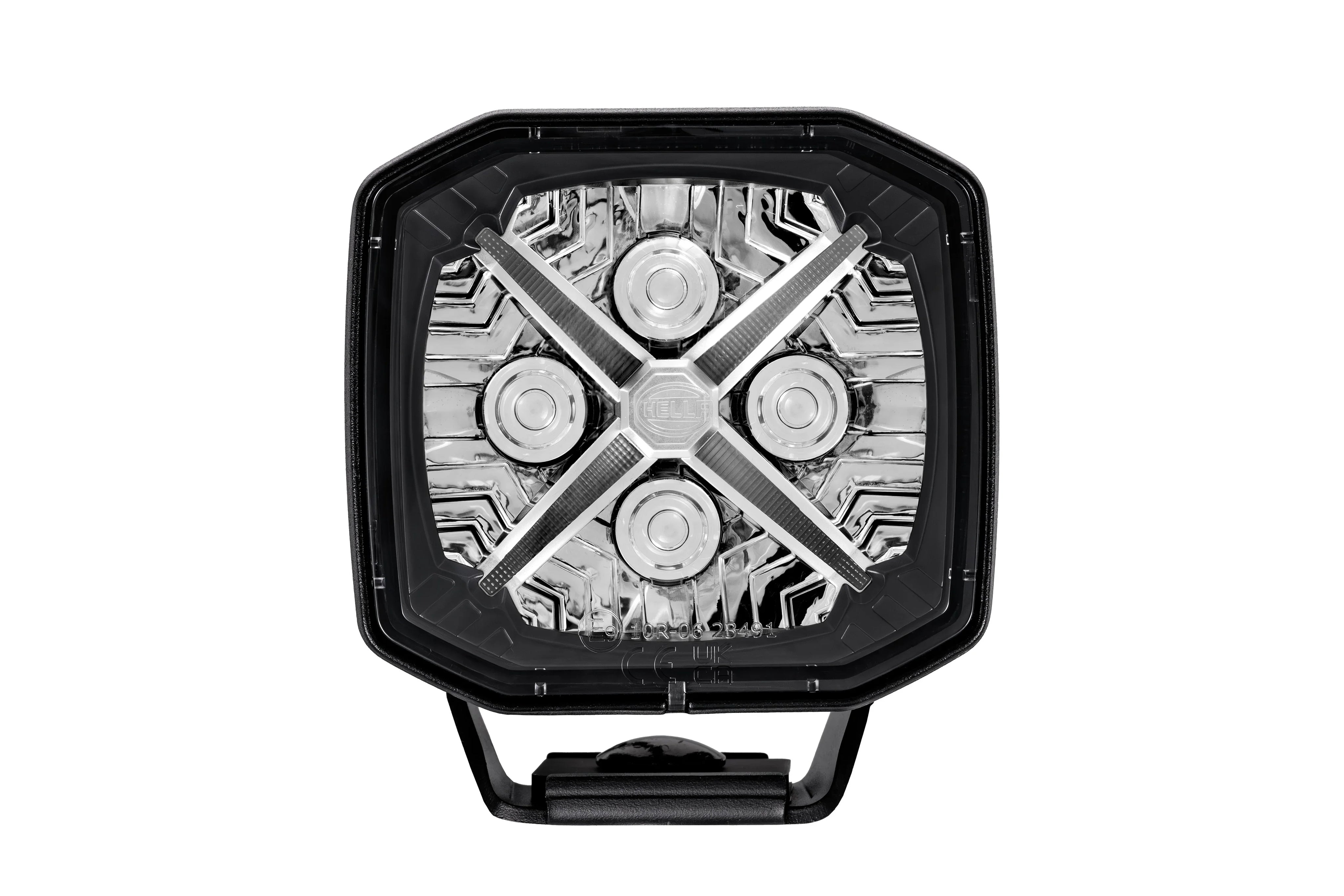

- Innovative “X” position light with white or amber illumination
- 28 high-performance LEDs for consistent light output
- Durable black aluminum housing with polycarbonate lens
- IP67 & IP69K rated for water and dust resistance
- Multi-voltage 12–24V DC compatibility
- Compact 3.6-inch cube design for flexible mounting /li>

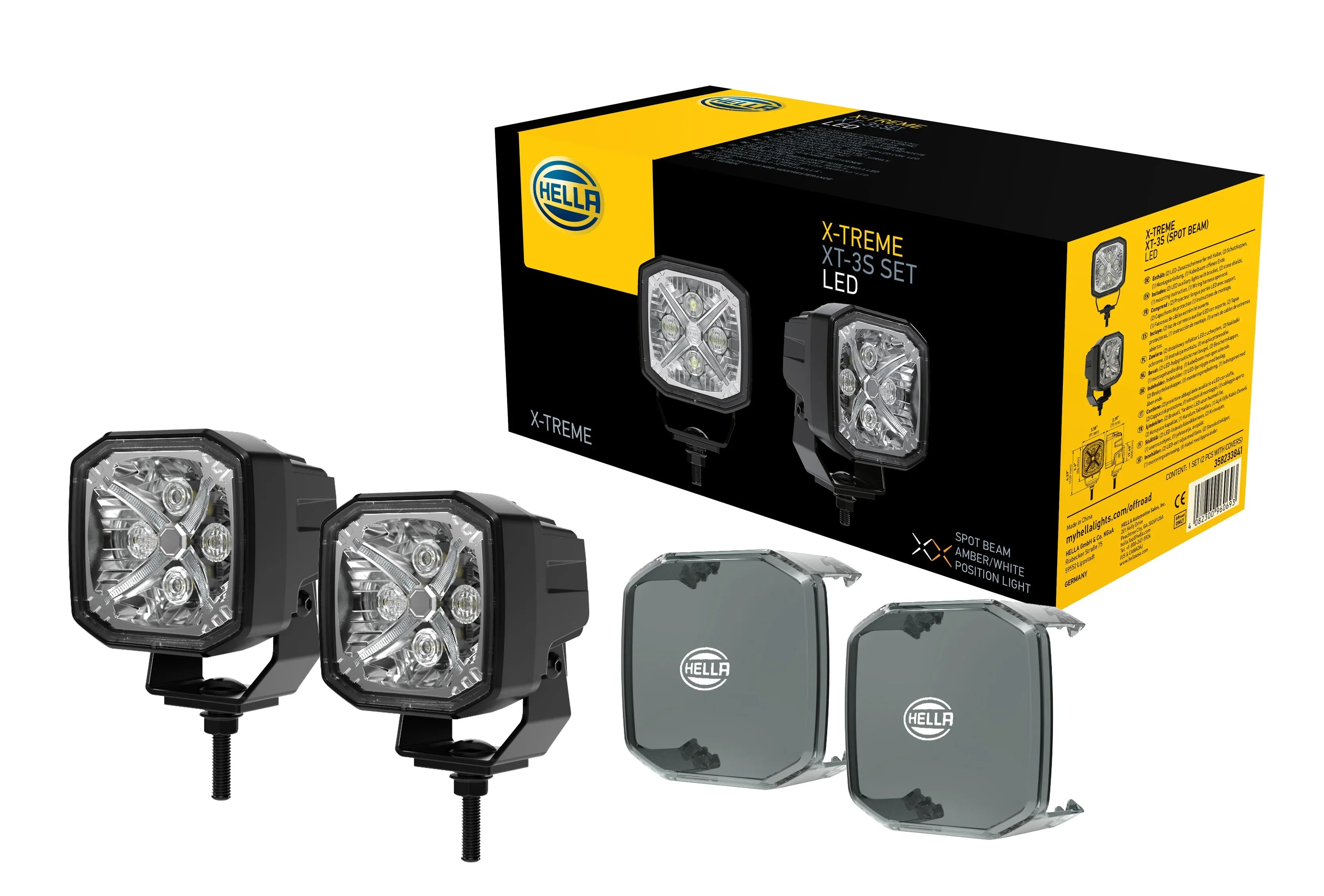

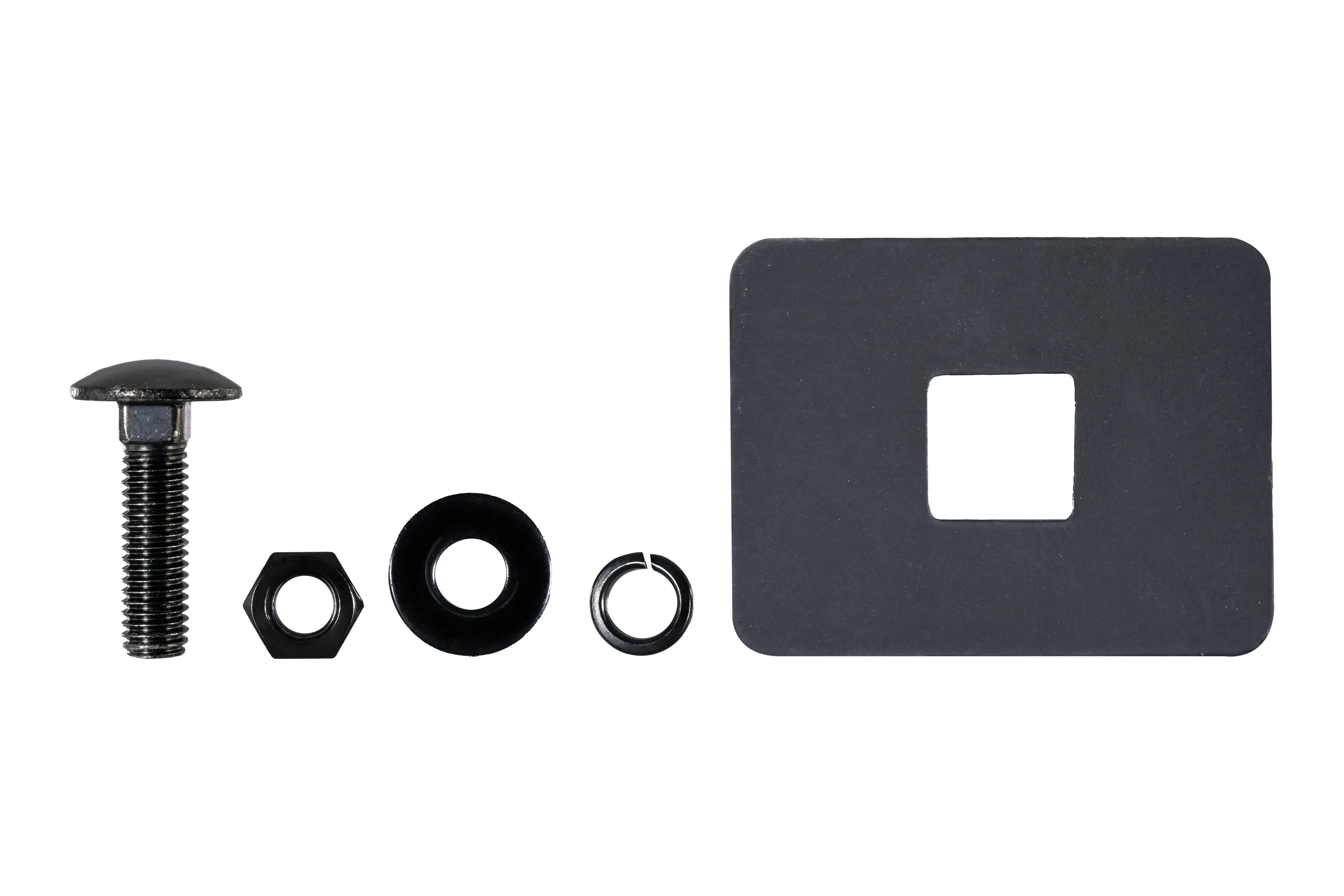

- Includes mounting hardware and brackets for installation
Benefits
- Enhanced Night Visibility: High lumen output and focused beam improve long-range vision in dark or off-road conditions.
- Versatile Lighting Options: Switchable white or amber position light adapts to road or off-road environments.
- Extreme Durability: Aluminum housing and impact-resistant lens ensure long service life in harsh terrains.
- Weatherproof Performance: IP69K/IP67 ratings protect against water, dust, and extreme conditions.
- Universal Fitment: Compatible with most vehicles using 12V or 24V systems, including trucks, SUVs, and UTVs.
- Easy Installation: Compact design with included mounting hardware allows flexible installation anywhere on the vehicle.
- Stylish Appearance: Distinctive “X” LED design enhances vehicle aesthetics while improving visibility.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 358233841 (1FE 358 233-841) |
| Product Series | HELLA X‑TREME LED Cube |
| Light Type | LED Spot Beam |
| Lumens | 5,700 lm |
| Power Consumption | 60 Watts |
| Voltage | 12–24V DC |
| LED Count | 28 LEDs |

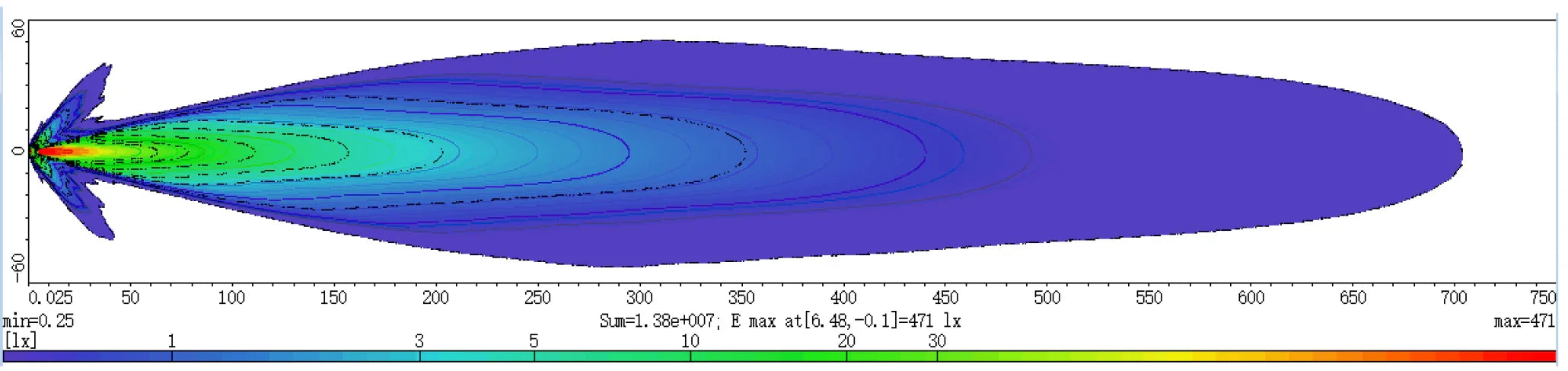

| Beam Pattern | Spot (~8°) |
| Color Temperature | 5700K (white light) |
| Light Color | White (primary), optional Amber position light |

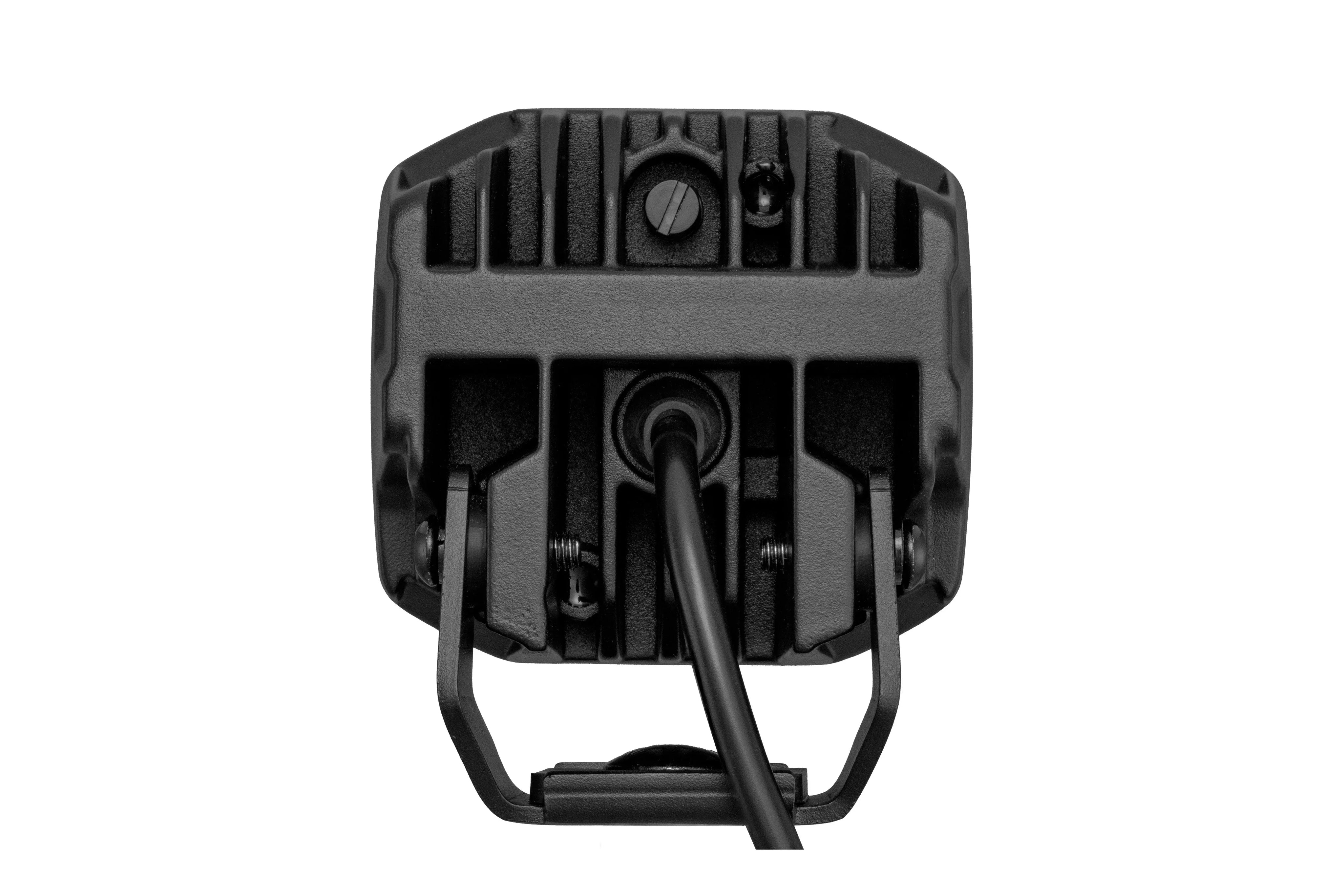

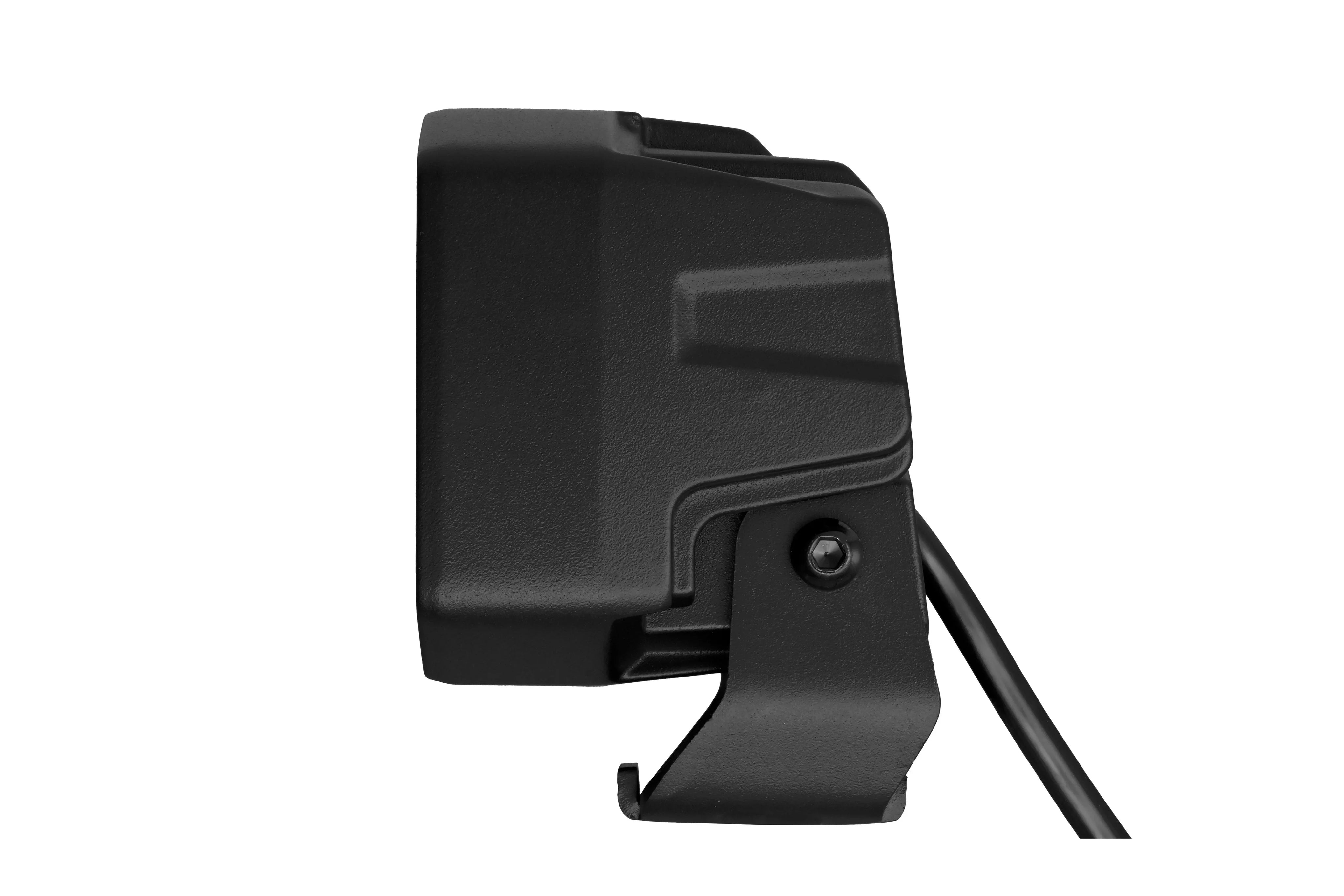

| Housing Material | Aluminum |
| Lens Material | Polycarbonate (PC) |
| Housing Color | Black |
| Dimensions | Approx. 3.6" cube (91 mm width) |
| Ingress Protection | IP67 / IP69K |
| Operating Temperature | -30°C to +60°C |
| Mounting | Upright / pedestal mount |
| Application | Off-road vehicles, trucks, SUVs, UTVs |
| Certifications | ECE R10 (EMC compliant) |
Applications
- Off-road driving and overlanding
- Truck and SUV auxiliary lighting
- Construction and utility vehicles
- ATVs, UTVs, and powersports vehicles
- Emergency and service vehicles
Why Choose HELLA X‑TREME LED Cube Lights?
The HELLA X‑TREME LED Cube series is engineered to “leave nothing in the dark,” combining high-output LED performance with rugged durability and innovative styling. With up to 5,700 lumens of focused light output and a compact design, this spotlight is ideal for demanding off-road applications and professional vehicle use.
